rslf_io.hpp File Reference

Implement i/o functions (read, write matrices). More...

#include <rslf_types.hpp>
#include <opencv2/highgui/highgui.hpp>

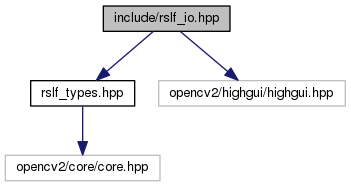

Include dependency graph for rslf_io.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
Mat	rslf::read_img_from_file (std::string path_to_folder, std::string name_we, std::string extension, int cv_read_mode=CV_LOAD_IMAGE_UNCHANGED, bool transpose=false, bool rotate_180=false)
std::vector< Mat >	rslf::read_imgs_from_folder (std::string path_to_folder, std::string extension, int cv_read_mode=CV_LOAD_IMAGE_UNCHANGED, bool transpose=false, bool rotate_180=false)
void	rslf::write_mat_to_yml (Mat img, std::string path_to_folder, std::string name_we, std::string extension="yml")
void	rslf::write_mat_to_imgfile (Mat img, std::string path_to_folder, std::string name_we, std::string extension="png", std::vector< int > compression_params=std::vector< int >())
Mat	rslf::read_mat_from_yml (std::string path_to_folder, std::string name_we, std::string extension="yml")
Mat	rslf::build_row_epi_from_imgs (Vec< Mat > imgs, int row, bool transpose=false, bool rotate_180=false)
	Assume we have a set of rectified images such that the epipolar planes are on the lines. Build the EPI along the given row. More...
Vec< Mat >	rslf::build_epis_from_imgs (Vec< Mat > imgs, bool transpose=false, bool rotate_180=false)
	Assume we have a set of rectified images such that the epipolar planes are on the lines. Build the EPIs along the given row. More...
Mat	rslf::build_row_epi_from_path (std::string path_to_folder, std::string extension, int row, int cv_read_mode=CV_LOAD_IMAGE_UNCHANGED, bool transpose=false, bool rotate_180=false)
	Assume we have a set of rectified images such that the epipolar planes are on the lines in a folder. Build the EPI along the given row. Images are supposed to be ordered in alphanumerical order. More...

Detailed Description

Implement i/o functions (read, write matrices).

Function Documentation

build_epis_from_imgs()

rslf::Vec< rslf::Mat > rslf::build_epis_from_imgs	(	Vec< Mat >	imgs,
		bool	transpose = false,
		bool	rotate_180 = false
	)

Assume we have a set of rectified images such that the epipolar planes are on the lines. Build the EPIs along the given row.

Parameters

imgs	The set of images from which to build the EPIs.
transpose	Indicates whether the algorithm should transpose the images (epipolar lines should be horizontal)

Returns

The requested EPIs.

build_row_epi_from_imgs()

rslf::Mat rslf::build_row_epi_from_imgs	(	Vec< Mat >	imgs,
		int	row,
		bool	transpose = false,
		bool	rotate_180 = false
	)

Assume we have a set of rectified images such that the epipolar planes are on the lines. Build the EPI along the given row.

Parameters

imgs	The set of images from which to build the EPI.
row	The row along which the EPI will be built.
transpose	Indicates whether the algorithm should transpose the images (epipolar lines should be horizontal)

Returns

The requested EPI.

build_row_epi_from_path()

rslf::Mat rslf::build_row_epi_from_path	(	std::string	path_to_folder,
		std::string	extension,
		int	row,
		int	cv_read_mode = CV_LOAD_IMAGE_UNCHANGED,
		bool	transpose = false,
		bool	rotate_180 = false
	)

Assume we have a set of rectified images such that the epipolar planes are on the lines in a folder. Build the EPI along the given row. Images are supposed to be ordered in alphanumerical order.

Parameters

path_to_folder	The path containing the images. Should end with '/' (but the function will correct if not the case).
extension	The extension of the images to be read. Should not start with '.' (but the algorithm will correct if not the case).
row	The row along which the EPI will be built.
cv_read_mode	The mode with which OpenCV will read the files.
transpose	Indicates whether the algorithm should transpose the images (epipolar lines should be horizontal).

Returns

The requested EPI.

read_img_from_file()

rslf::Mat rslf::read_img_from_file	(	std::string	path_to_folder,
		std::string	name_we,
		std::string	extension,
		int	cv_read_mode = CV_LOAD_IMAGE_UNCHANGED,
		bool	transpose = false,
		bool	rotate_180 = false
	)

Reads an image from the given path, name and extension.

Parameters

path_to_folder	Path to the folder containing the file. Should end with '/' (but the function will correct if not the case).
name_we	Name of the file without path or extension.
extension	The extension of the file. Should not start with '.' (but the algorithm will correct if not the case).
cv_read_mode	The mode with which OpenCV will read the file.

Returns

The requested image in Mat format.

read_imgs_from_folder()

rslf::Vec< rslf::Mat > rslf::read_imgs_from_folder	(	std::string	path_to_folder,
		std::string	extension,
		int	cv_read_mode = CV_LOAD_IMAGE_UNCHANGED,
		bool	transpose = false,
		bool	rotate_180 = false
	)

Reads all images with requested extension in requested folder.

Parameters

path_to_folder	Path to the folder containing the files. Should end with '/' (but the function will correct if not the case).
extension	The extension of the files. Should not start with '.' (but the algorithm will correct if not the case).
cv_read_mode	The mode with which OpenCV will read the files.

Returns

The requested images in a vector of Mat.

read_mat_from_yml()

rslf::Mat rslf::read_mat_from_yml	(	std::string	path_to_folder,
		std::string	name_we,
		std::string	extension = "yml"
	)

Reads the given .yml file in the given folder to a Mat.

Parameters

path_to_folder	Path to the folder where to read the file.
name_we	Name of the file without path or extension.
extension	The extension of the file.

Returns

A Mat containing the image

write_mat_to_imgfile()

void rslf::write_mat_to_imgfile	(	Mat	img,
		std::string	path_to_folder,
		std::string	name_we,
		std::string	extension = "png",
		std::vector< int >	compression_params = std::vector< int >()
	)

Writes the given Mat to an image in the given folder.

Parameters

img	The Mat to save.
path_to_folder	Path to the folder where to save the file. Should end with '/' (but the function will correct if not the case).
name_we	Name of the file without path or extension.
extension	The extension of the file. Should not start with '.' (but the algorithm will correct if not the case).
compression_params	Compression parameters.

write_mat_to_yml()

void rslf::write_mat_to_yml	(	Mat	img,
		std::string	path_to_folder,
		std::string	name_we,
		std::string	extension = "yml"
	)

Writes the given Mat to a .yml file in the given folder.

Parameters

img	The Mat to save.
path_to_folder	Path to the folder where to save the file. Should end with '/' (but the function will correct if not the case).
name_we	Name of the file without path or extension.
extension	The extension of the file. Should not start with '.' (but the algorithm will correct if not the case).
